The New Loop Pedal – Part 2

by Dave

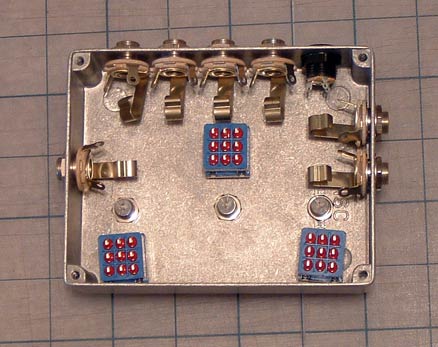

The last post left off after having completed the drilling of the new enclosure. Next I installed all the parts into the enclosure. Thankfully my poor drilling didn’t screw things up and they all still fit.

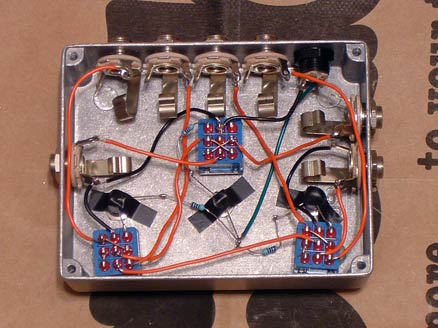

After that came the wiring. I was able to install all the wires by wrapping the wire ends to the posts so they stayed in place. I then soldered all the joints at once. It worked pretty well. I ended up using a bit of electrical tape to make sure the LEDs don’t push through. I wasn’t too excited by the quality of the LED bezels and probably won’t buy them again.

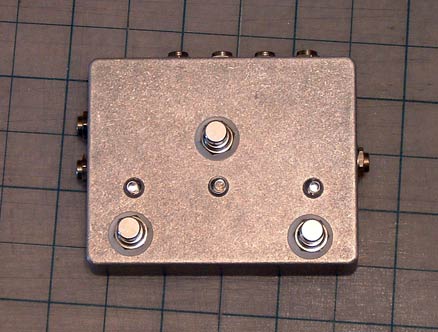

Finally, after a quick test of the pedal, I give you the completed two loop pedal with a separate tuner output.
